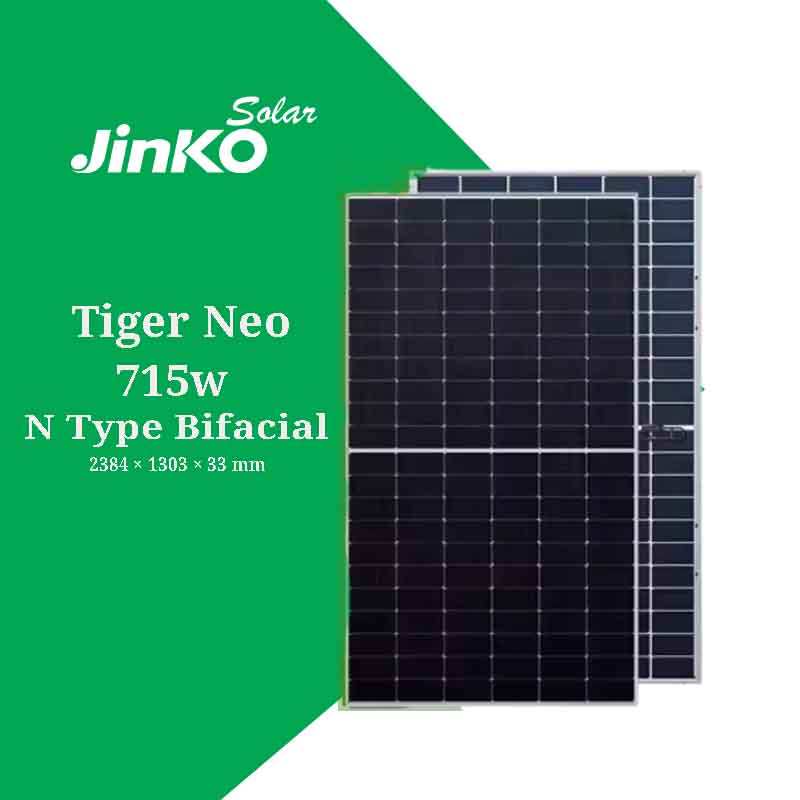

Jinko Solar 715W N-Type Bifacial Tiger Neon

Jinko Solar 715W N-Type Bifacial Tiger Neon The Jinko Solar 715W N-Type Bifacial Tiger Neon Tiger Neon is an advanced high-power solar module designed for large residential, commercial, and utility-scale solar installations. It uses modern N-type TOPCon monocrystalline cells and a bifacial, dual-glass design that can generate power from both the front and back surfaces, increasing total energy yield under the right conditions. Cell Information Cell Type: Jinko Solar 715W N-Type Bifacial (TOPCon technology) Number of Cells: 132 (66 × 2 half-cells) Dimensions & Weight Dimensions: 2384 × 1303 × 33 mm Weight: 37.5 kg Glass & Frame Front Glass: 2.0 mm, Anti-Reflection Coating Back Glass: 2.0 mm, Heat-Strengthened Glass Frame: Anodized Aluminium Alloy Junction Box & Cables Junction Box: IP68 Rated (weatherproof) Output Cables: 4.0 mm² Positive ( ): 400 mm Negative (–): 200 mm Custom lengths available Safety & Protection Protection Class: Class II Fire Type: IEC Class C Electrical Parameters (STC) Maximum Power (Pmax): 715 W Voltage at Max Power (Vmp): 40.77 V Current at Max Power (Imp): 17.54 A Open-Circuit Voltage (Voc): 48.8 V Short-Circuit Current (Isc): 18.60 A Module Efficiency: 23.02% Power Tolerance: 0 ~ 3% Temperature Coefficients Pmax: –0.29% / °C Voc: –0.25% / °C Isc: 0.045% / °C Standard Test Conditions (STC) Irradiance: 1000 W/m² Cell Temperature: 25°C Air Mass (AM): 1.5 Warranty 25 Years Linear Output Warranty (covers performance, excluding physical damage)
